Electric Wheelbarrow Kit 24V/36V/48V 250W/350W/400W/500W Brushless Controller Brake Thumb Throttle Reverse for Wheelbarrow
Electric Wheelbarrow Kit 24V/36V/48V 250W/350W/400W/500W Brushless Controller Brake Thumb Throttle Reverse for Wheelbarrow
SPECIFICATIONS:
- High-concerned chemical: None
- Name 1: wheelbarrow kits
- Name 2: electric wheelbarrow parts
- Name 3: wheelbarrow accessories
- Name 4: wheelbarrow brushless controller
- Type: Controller

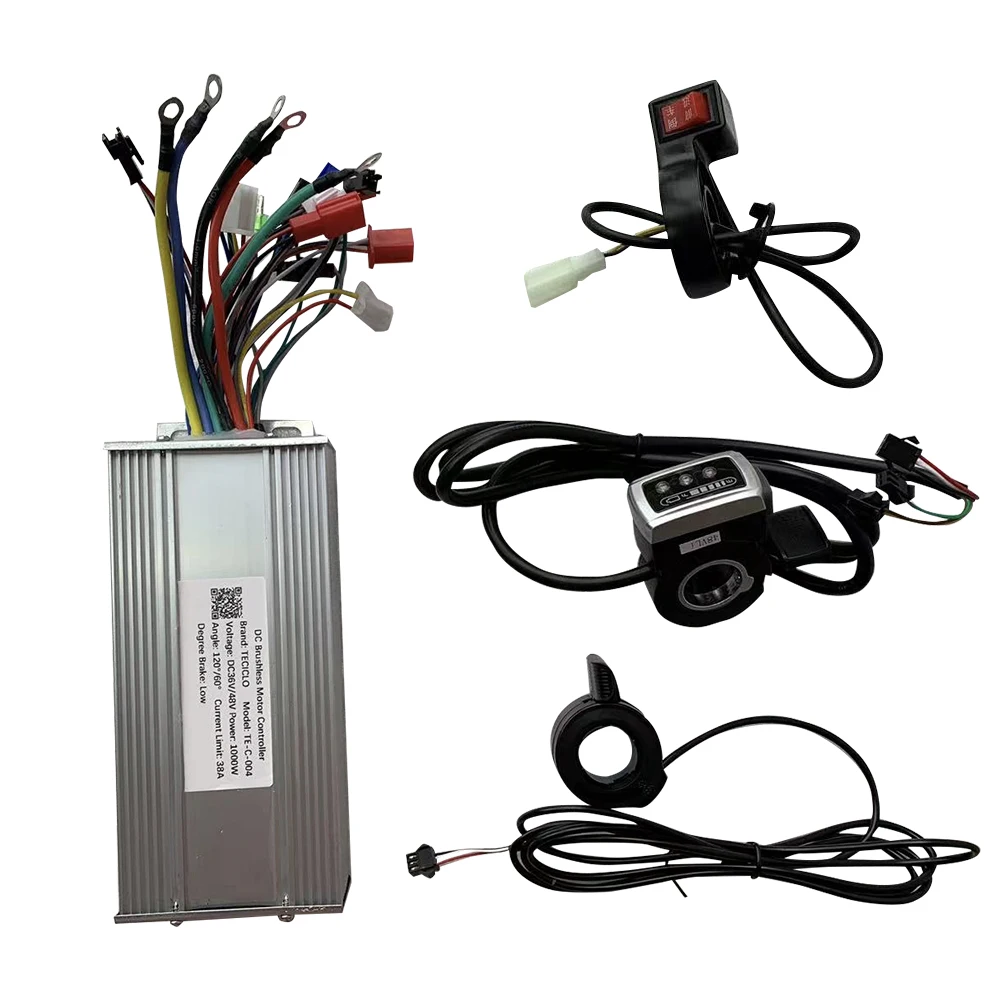

Package included
brushless controller *1
thumb throttle *1
EBS brake throttle*1
Reverse switch *1

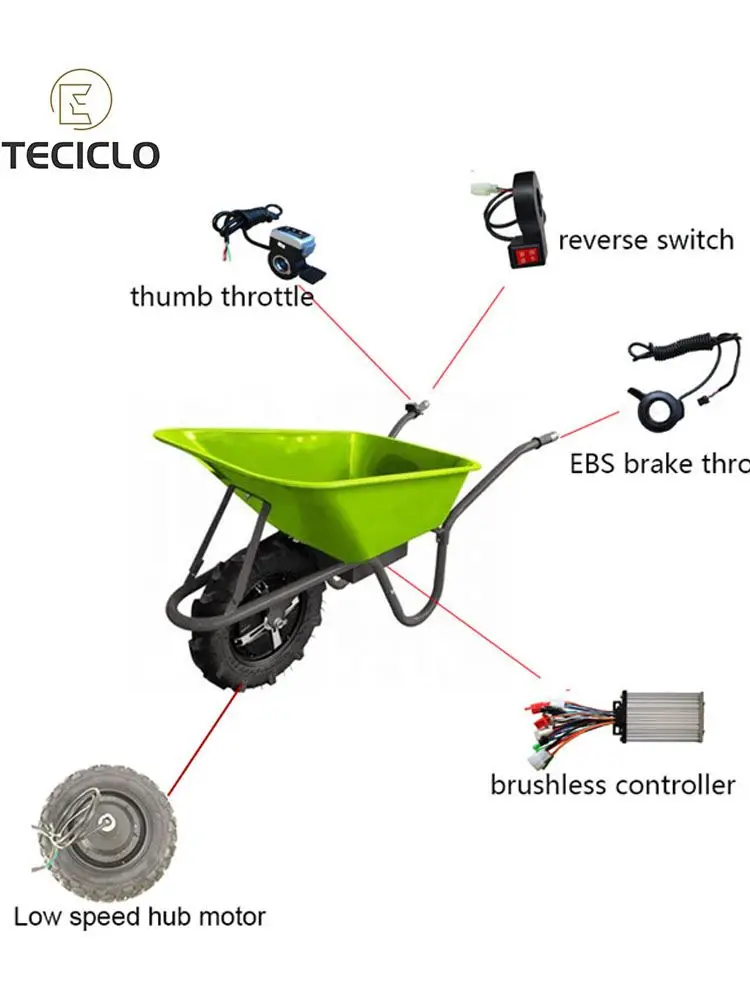

You can design your garden wheelbarrow with those accessories， it's not a complete wheelbarrow, it's just wheelbarrow parts, besides, you also need to buy hub motor wheel, battery , frame to make the whole system work.
Picture with Parameter
Thumb Throttle
• Voltage: 24V 36V 48V
• Type: thumb throttle with on-off switch and battery indicator
• Working Voltage: 5V
• Output Voltage:0.8-4.2V
• Size:L 69mm W 69mm H 30mm
• Wiring: Six Core wiring
• Wiring Lengh:1.5M
• Materials: PC/ABS
• Waterproof:IPX5
EBS brake handle
• Size: Mounting hole diameter 22mm
• Color: Black
• Size: L60mm W30mm H47.6mm
• Cable：1.8M
• Materials: ABS+ PC
• Working Voltage: 5V
• Output Voltage:0.8-4.2V
• Waterproof: IPX4
• Used for: electric brake
the electronic brake is progressive so that you can regulate the brake intensity

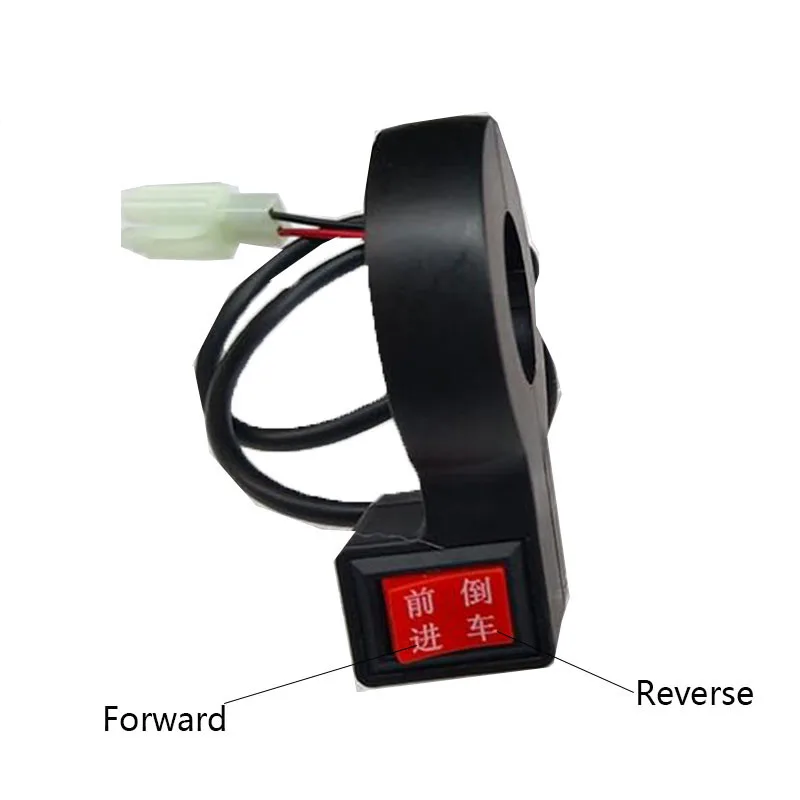

Reverse Switch
• Material: ABS plastic
• Weight:200g
• Fits for 22.5mm Handlebars
• Equipped with 45cm cable
• Waterproof: IPX5

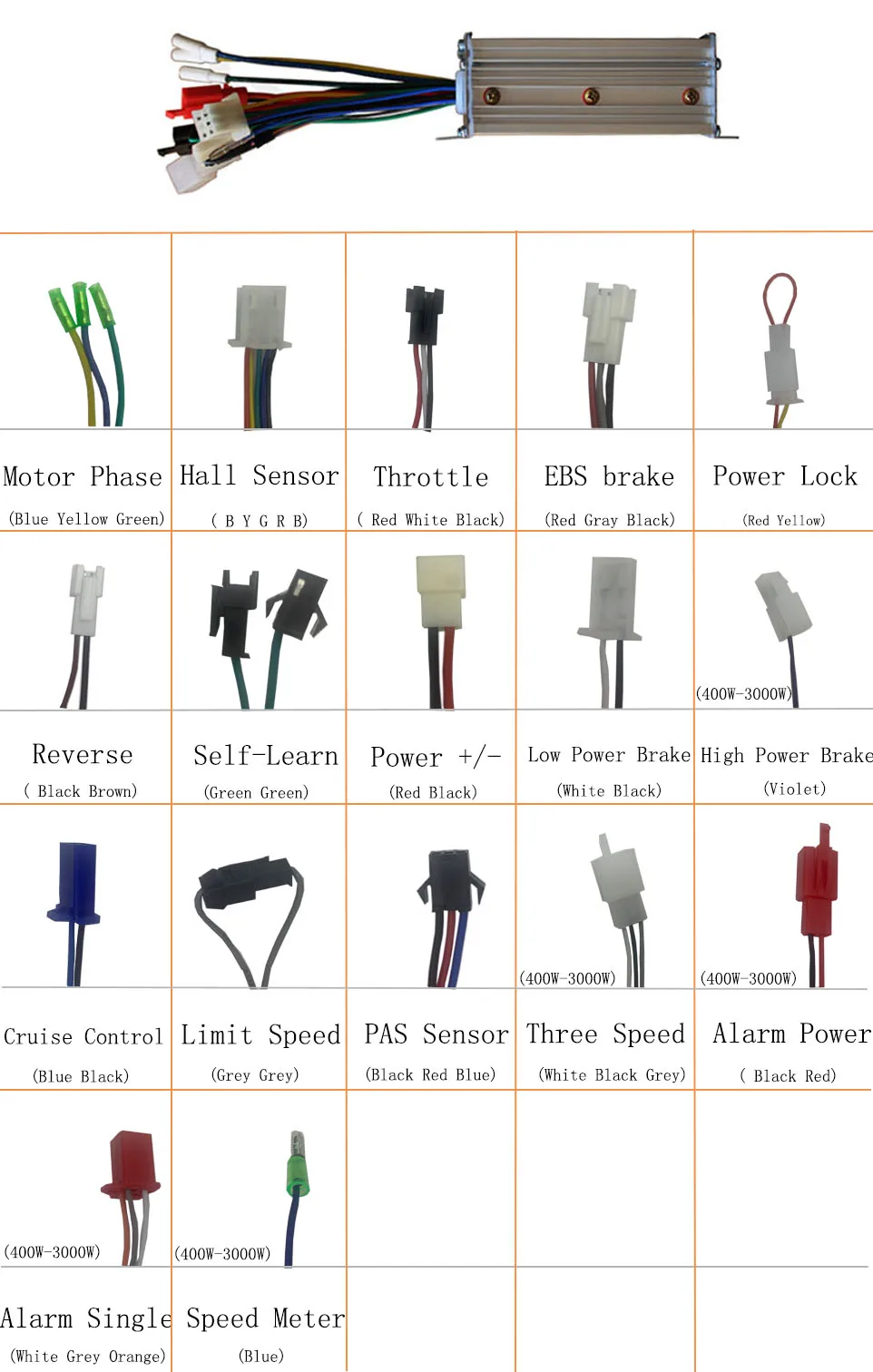

Controller Wire

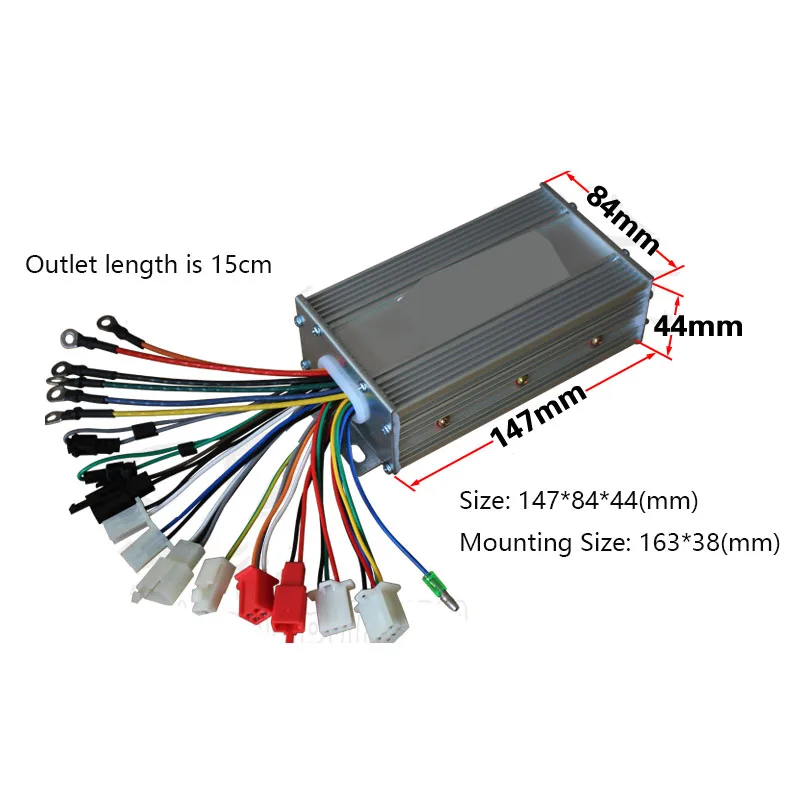

250W/350W Controller
Rated voltage: 24V 36V 48V
Rated power: 250W 350W
Max current:10-23A default 15A
Battery undervoltage： 20V/31V/42V
Matched motor phase angle: 60°/120°
400W/450W Controller
Rated voltage: 24V 36V 48V
Rated power: 400W 450W 500W
Max current:17-26A default 22A
Battery undervoltage： 20V/31V/42V
Matched motor phase angle: 60°/120°
500W 600W Controller
Rated voltage: 24V 36V 48V
Rated power: 500W 600W
Max current:22-35A default 28A
Battery undervoltage： 20V/31V/42V
Matched motor phase angle: 60°/120°

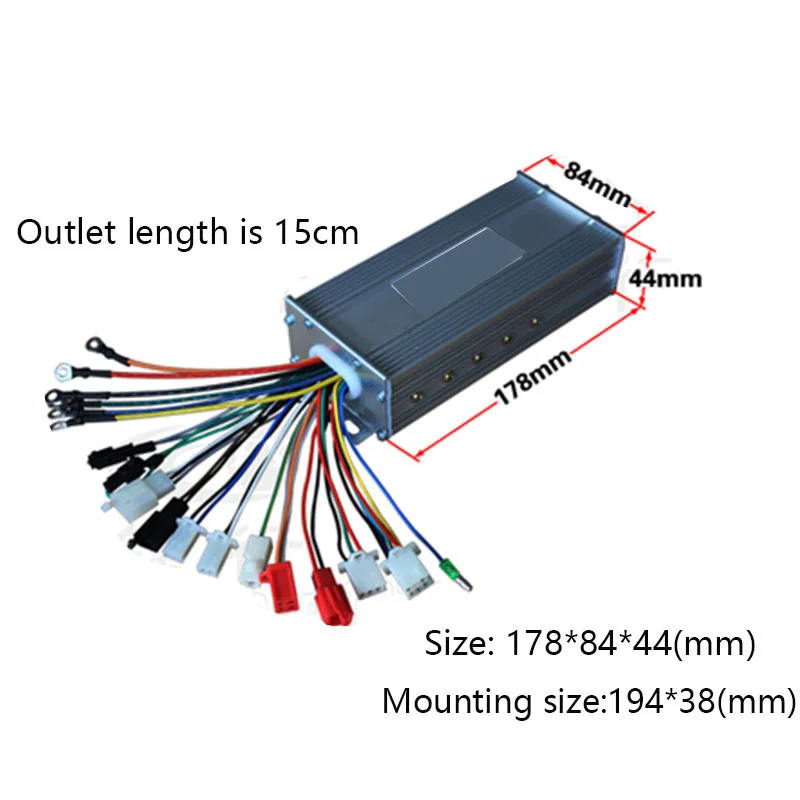

800W/1000W Controller
Rated voltage: 36V 48V
Rated power: 800W/1000W
Max current:38A
Battery undervoltage： 31V/42V
Matched motor phase angle: 60°/120°
Wire Connection Guide
this is a guide for you when you connect all parts, motor and battery are not including in this selling kit
You may also interested
Motorized Wheelbarrow Conversion Kits with motor wheel, please click the picture to see more details

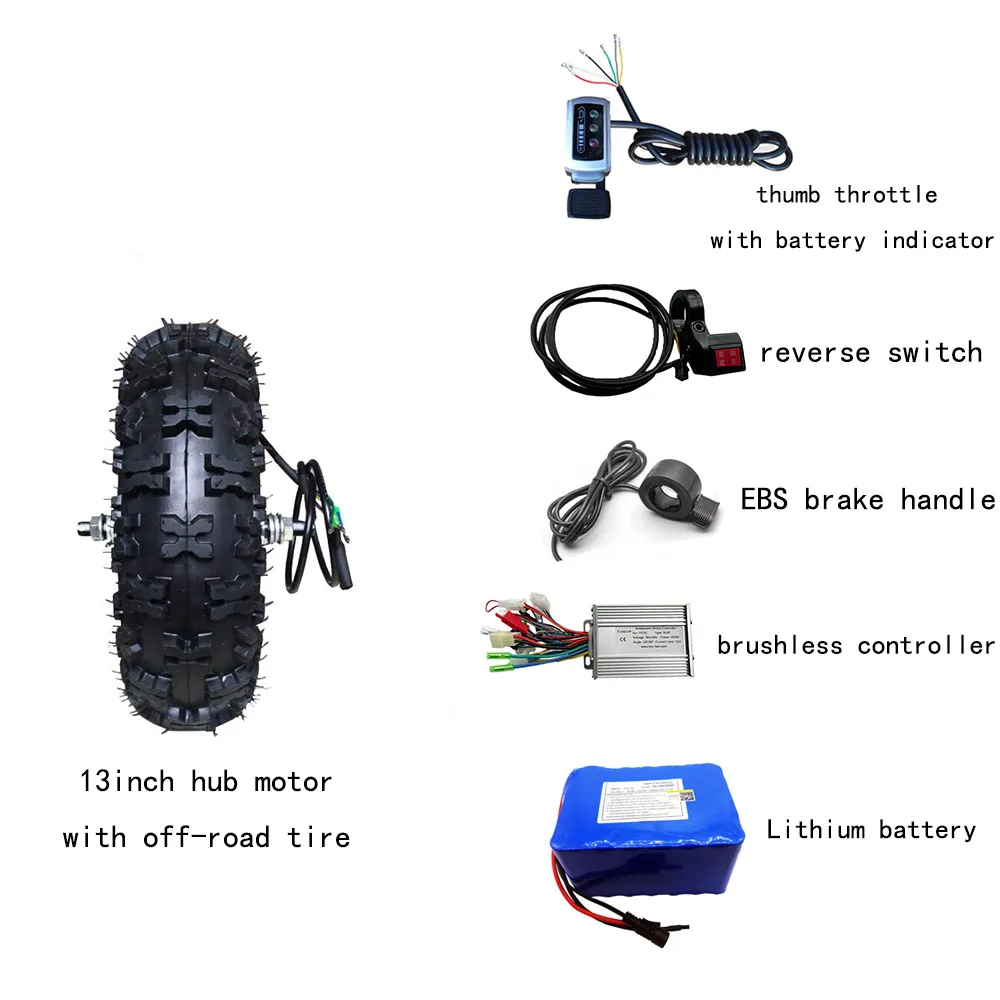

Motorized Wheelbarrow Conversion Kits with motor and battery, please click the picture to see more details
