Product Description

If you are looking for a powerful and reliable gasoline engine, our high-power gasoline engine will be the ideal choice for you. It is made of premium materials to ensure the durability and stability of the engine. Its reliable performance ensures smooth operation and reliable power transmission and can help you complete the task in the shortest time, saving time and labor costs.

Specification

Color: Red, Black
Material: Aluminium, Iron
Engine Type: 4-Stroke
Starting Mechanism: Pull Start
Power: 9700W 15HP
Rated Power: 8800W
Fuel Type: Gasoline
Cooling Type: Air Cooling
Displacement: 420cc
Rotational Speed: 3000-3600rpm
Fuel Capacity: 6.5L/1.72gal
Fuel Consumption: ≤ 374g/kw.h
Engine Oil Capacity: 1.1L/0.29 gal

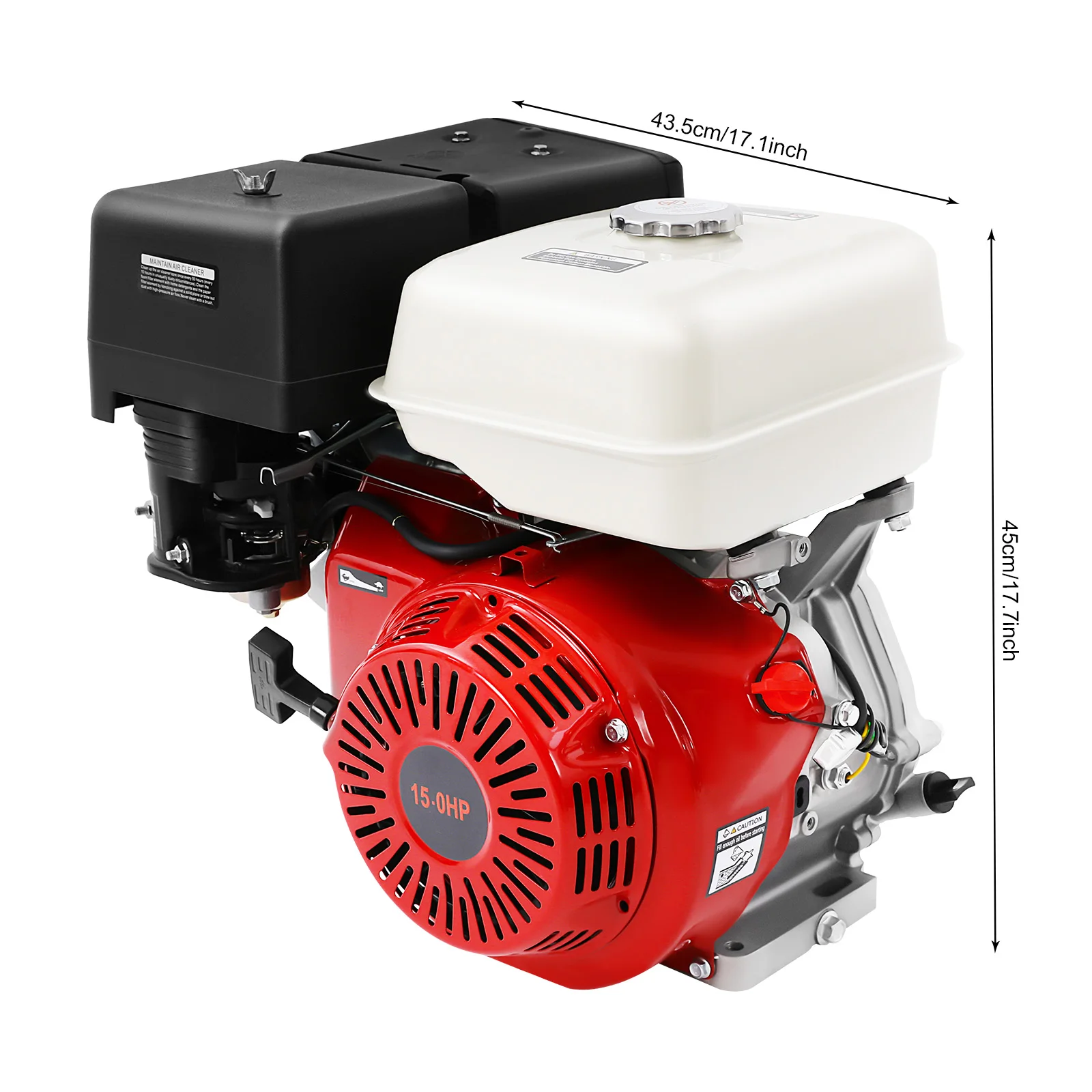

Product Size(L*H): 43.5*45cm/17.1*17.7in
Package Size: 52.2*47*45.2cm/20.55*18.5*17.8 in
GrossWeight: 30kg/66.14 lbs
Net Weight: 28.26kg/ 62.3 lbs

Package Included

1* Gasoline Engine
1* English Manual
All Accessories for Installation

Key Features

Premium Material: It is mainly made of high-class aluminium and iron, which is impact-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.

Sufficient Power: It has a strong power of 9700W and a maximum speed of 3600 rpm, so it can handle heavy loads and provide you with a more efficient working experience.

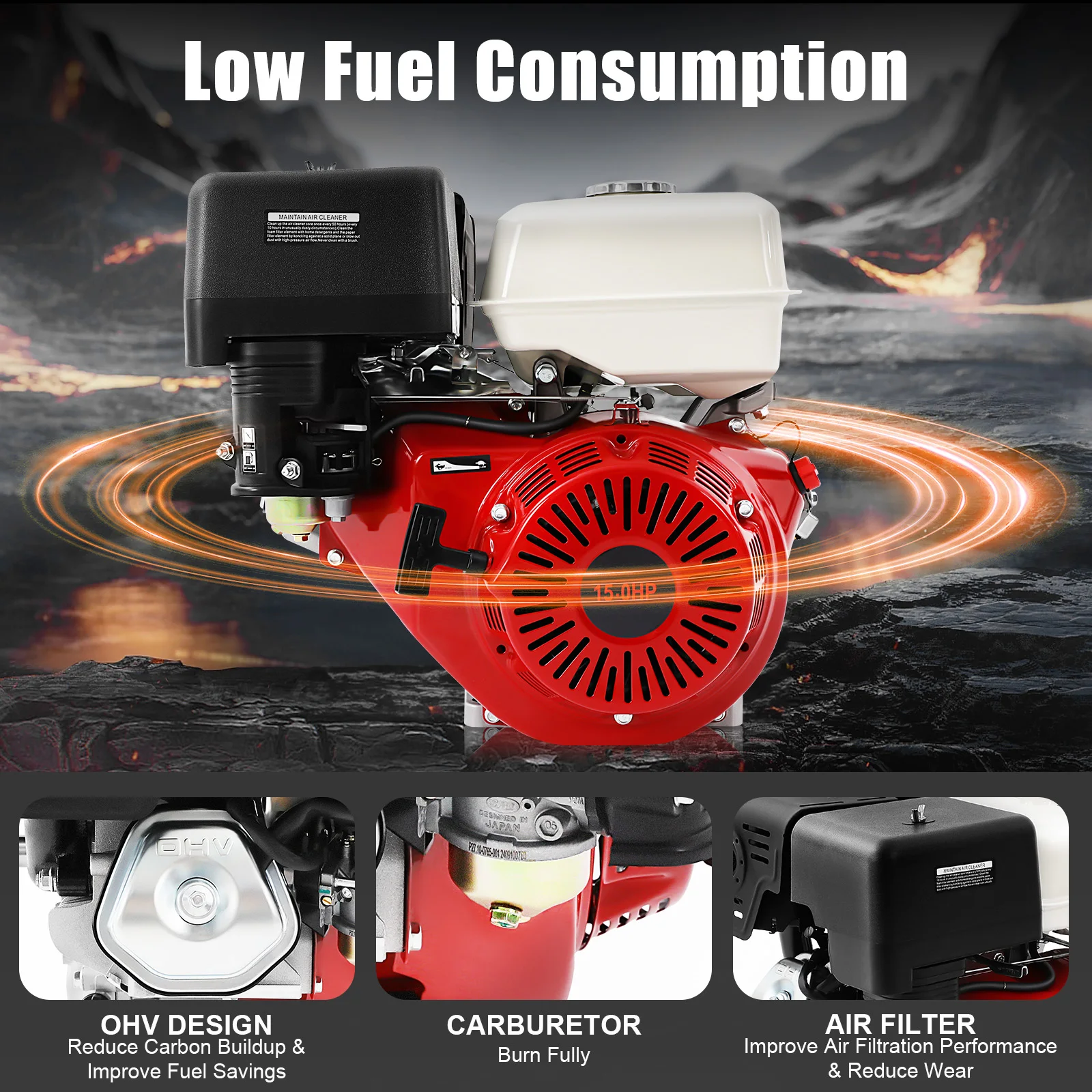

Energy-saving&Money-saving: With a large capacity fuel tank (1.72 gallons), it works for a long time, so you don't have to refill frequently. In addition, the engine is equipped with a high-precision carburetor to reduce fuel consumption (≤374g/kw.h), thus reducing costs.

Efficient Cooling: The built-in forced air cooling mechanism is designed to keep the motor cool, providing high reliability and durability. In addition, the heat dissipation holes also help reduce the temperature of the motor in time, prolong the service life of the motor, and reduce potential safety hazards.

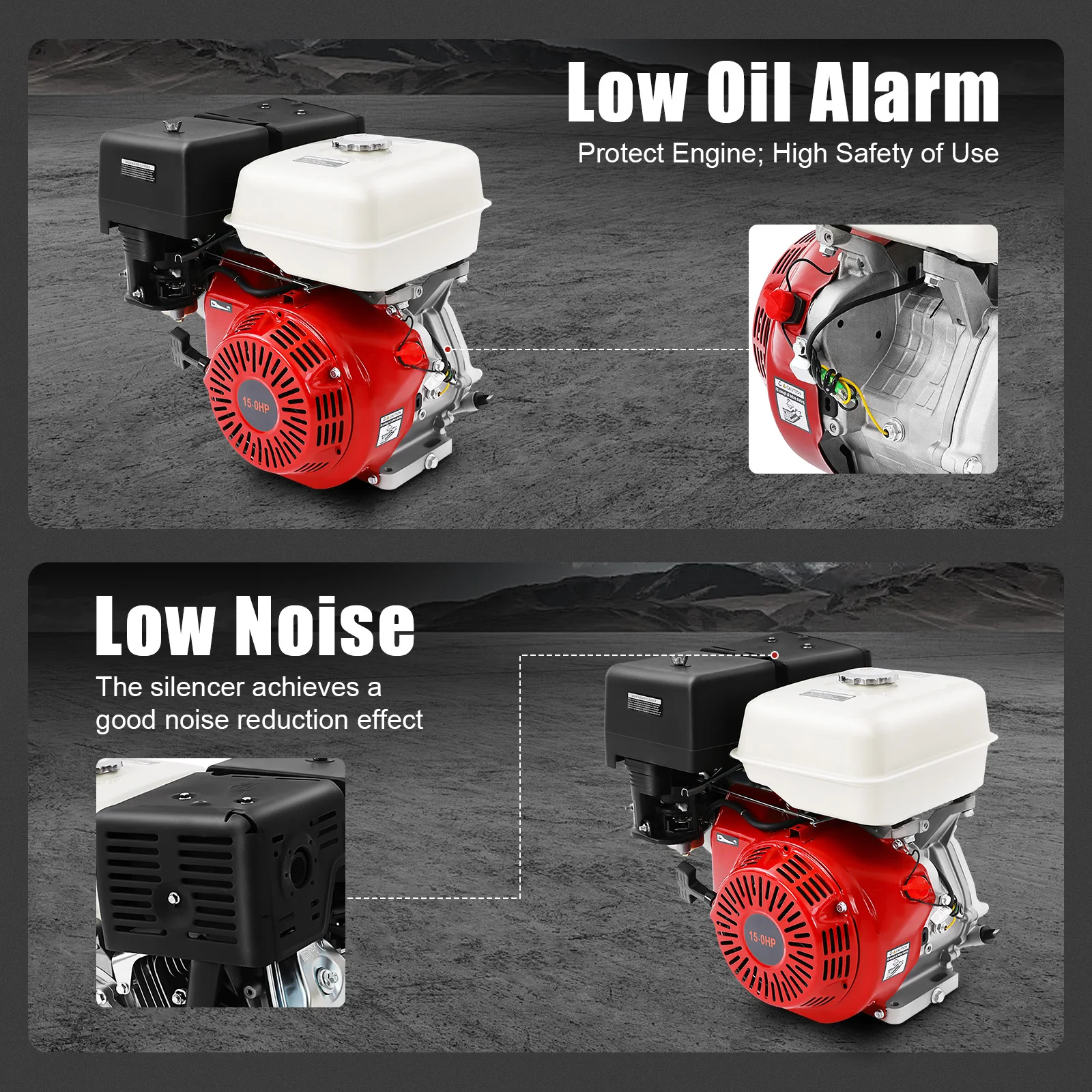

Low Noise: The silencer will effectively reduce noise and provide you with a relatively quiet working environment.

Thoughtful Design: The product is equipped with a low oil alarm function, preventing the engine from suddenly flaming out, to provide you with convenience.

Effortless Cleaning: Thanks to the smooth surface and simple structure, you can easily wipe off the dirt on it with a soft cloth (not included).

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

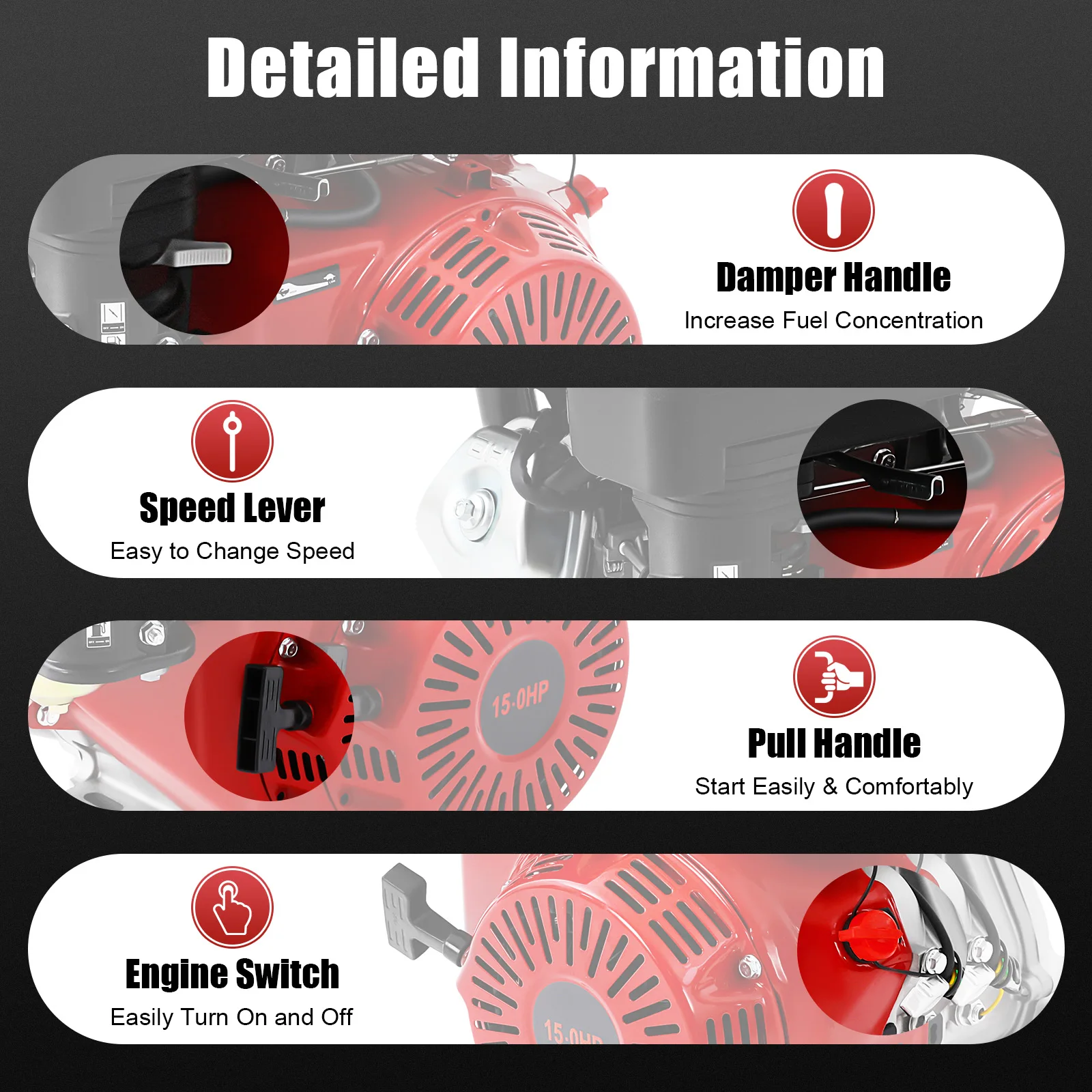

Details

Sealing Oil Port: The oil port adopts the cover sealing design to effectively prevent oil leakage and improve the safety of use.

Air Filter: It can not only purify the air but also help reduce wear and extend its service life.

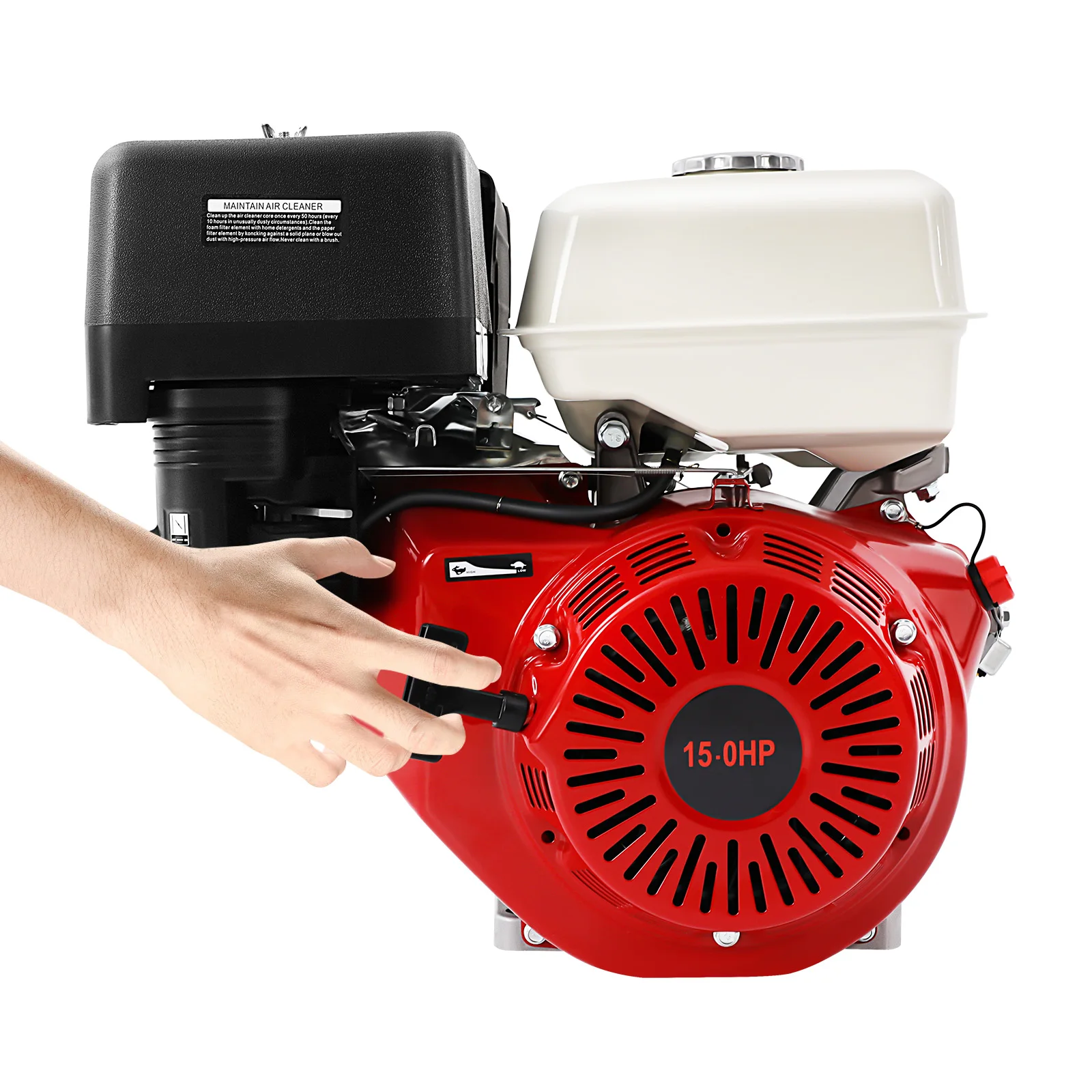

Pull Handle: The ergonomically designed starting handle is not only rugged but also easy to start and use.

How to Use

1.Check the oil level, to the line above H. Add about 0.16gal 4-stroke gasoline engine oil, series: 15W30 or 15W40 (Remark: If the engine oil is not enough, it will cause the engine not to start. If it starts, the engine will shake.)
2.Add petrol 92# or 95# (Remark: When you put the fuel tank cap, you should fix the two ears in the cap well with the part concave in, then press the cap and turn the fuel tank cap.)
3.Turn the adjust arm to the left side (The new machine keeps the position, and don't move it). Turn the throttle to the left side. Turn the fuel control valve on the right side.
4.Turn the engine switch to the ON position.
5.Start the engine.
6.After the engine starts, turn the check valve to the right side.

Application

It is suitable for water pumps, vibrators, generators, dosing machines, puffers, threshers, recreational vehicles, construction, farm/ranch, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, vacuums, etc.

Notes

1.Please read the product label and manual carefully before use.
2.Please note that this product does not contain fuel.
3.Please change the engine oil and pump oil at first 10 hours, and change the engine oil and pump oil every 100 hours.
4.After a long time of stock, you need to change the new petrol for the carburetor and fuel tank.
5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
